Smooth-Rollers

SMOOTH-ROLLER

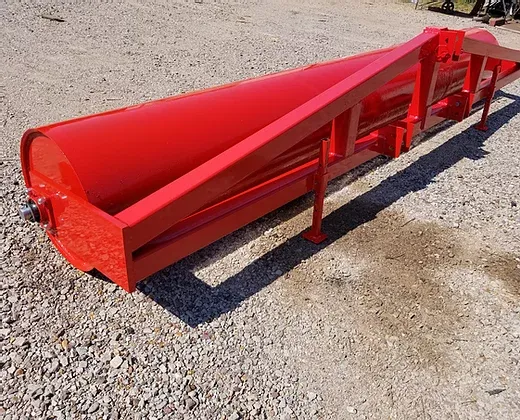

Smooth-Roller

We offer three Roller models: Mid-weight, Heavy Duty & Extreme Duty - All are commercial quality, strength & durability.



From small lawn units, to large commercial equipment. Depending on your application, you can choose the frame style, drum diameter, width, and mounting type. All with the very best craftsmanship. You won't find a better built roller!


Choose from drum diameters of 10", 16" or 24". Or propane drums for an extreme roller. Standard thicknesses are 3/8" thick for 10" & 16". The 24" drum thickness range from 1/4"-5/8" thick. Propane drums are 3/8”-1/2” thick. Hubs are 3/8”-1/2" thick & bearing plates range from 1/4"- 3/4" thick.

EQUIPMENT OPTIONS

Mid-weight Rollers

Mid-weight Rollers are available with 10” drum that rides on a solid 1 3/4" steel axle, supported by quality greasable bearings. Built on our standard “cultipacker frame”, it is constructed with 3/8” thick, 2 ½” angle iron with extra cross-bracing and laser-cut bearing plates to ensure smooth operation and durably.

Heavy Duty Rollers

Heavy Duty Rollers are available with 16, or 24 inch drums and ride on solid 2” steel axle, supported by quality greasable bearings. Frames are constructed with square or rectangular tubing.

Extreme Duty Rollers

Extreme Duty Rollers are Propane drum rollers available in 24 or 30”+ drums. 2” steel axle, pillar block bearings, and 3x5” or 4x6” rectangular tubing frame. Available in pull-tongue, 3-pt hitch, front-end loader, or hydraulic travel models.



All drum sizes have a plug to permit adding/removing water for added weight.

Appx drum (only) weight per foot:



10” drum = 40lbs dry, 74lbs wet

16” drum = 82lbs dry, 169lbs wet

24” drum = 130lbs dry, 320lbs wet

 * Larger drums are available if needed.



We are a custom shop and can build any size or mounting system. Our typical Roller is a single axle with 3-pt hitch; but we can build with a pull-tongue, on a front-end loader mount, hydraulic travel system, with or without batwings. You need it, we can build it.



Your choice of colors.

TRAVEL OPTIONS

Our ATV units are heavy enough to actually "compact your soil", but the quality square frame makes it easy to pull. If you buy a unit too lite to actually compact, you haven't met the need for which you purchased a cultipacker.  Available with drop-pin or ball hitch tongue.



Tractor units are available with drop-pin, ball hitch or pinel eyelet.

For traveling

you have a few options:

1.

Towbar available with drop-pin, ball or pintle eyelet.

2.

Depending on the size and type, units are equipped with either

  • 2000lb spindles/hubs & 12" wheels/tires; or
  • 3500lb spindles/hubs & 15" wheels/tires.

3.

Choose a flip-over, manual-lift or hydraulic-lift travel system.

All options are strong & durable and give you a convenient way of transporting from food-plot to food-plot, or to a different property.  It also allows you to lift the unit off the ground when stored.

Flip-over

Flip-over models are available in sizes of 3-10’ with 12" wheels/tires.

 * The flip-over option gives you great flexibility at a reasonable price. But these things weigh appx 100lbs per foot. Flipping over an 800-1000 cultipacker is difficult.  If you opt for a flip-over, I recommend you block both wheels & use a chain or strap to flip. Just let it free-fall and then hook back up. A good alternative for larger units is a manual-lift.

Manual-lift

Manual-lift models models are available in sizes of 3-12' with 12" wheels/tires.

The manual-lift travel system costs less than hydraulics and eliminates the need to disconnect or flip your unit to travel.  The heavy-duty jack to make lifting easier & quicker.

Hydraulic-lift

Hydraulic-lift models are available in any size with 14/15" wheels/tires, new hoses & quick-connects. Everything you need to hit the field.

WARRANTY

Custom Cultipacker equipment is warranted against defects in material or workmanship for three years.

We insist on producing nothing but the highest quality, longest lasting equipment on the market.

PAYMENT

50% down puts your unit in production, the remaining 50% due prior to delivery. We accept credit cards, PayPal, Zelle, & checks.   Prices good for 90 days. Special offers good for 1 week.

For current prices and availability, please call, text or email us.
