Aerators

AERATOR

Aerator

Why aerate? – Regular aeration enhances soil health by improving fertilizer, lime, & nutrient absorption. It helps control pH level, reduces water run off & puddling, relieves soil compaction, enhances air/water absorption & root explanation. Greatly improves overseeding results.

To help your soil conditioning, we offer two classes of Aerators - core plugger & spike aerator. Each are available in Compact or Commercial models. Size can range from 3’-15+. You won't find a better built Aerator.

EQUIPMENT OPTIONS

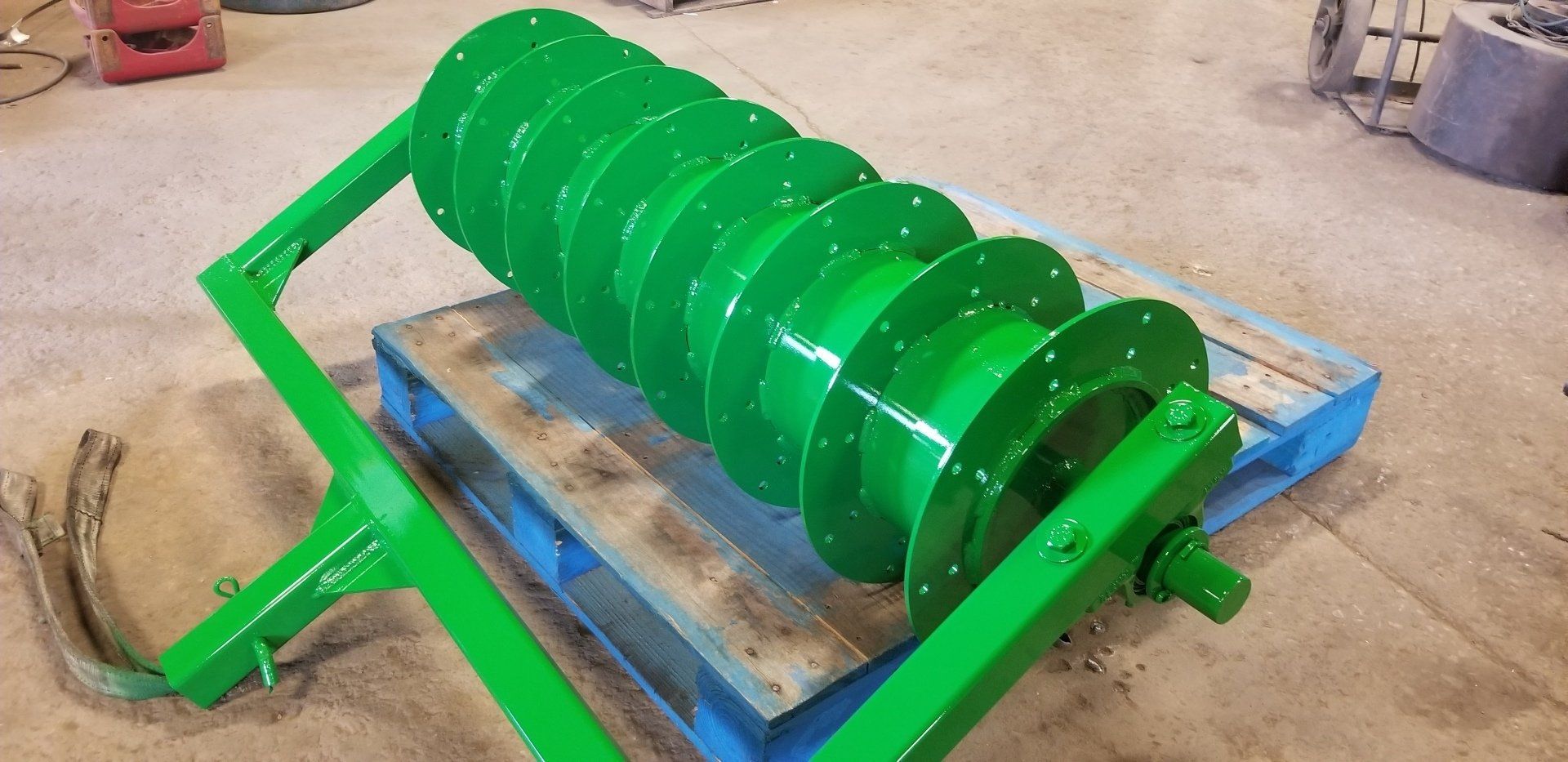

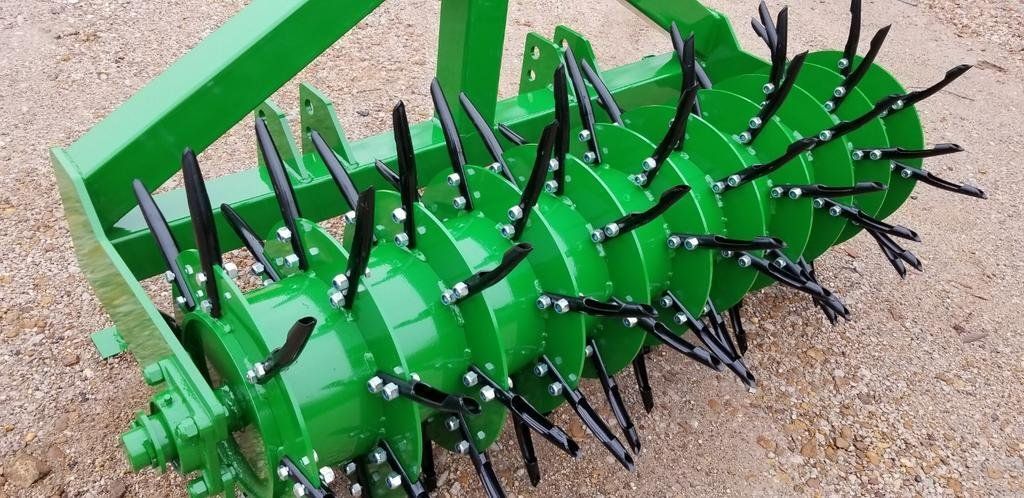

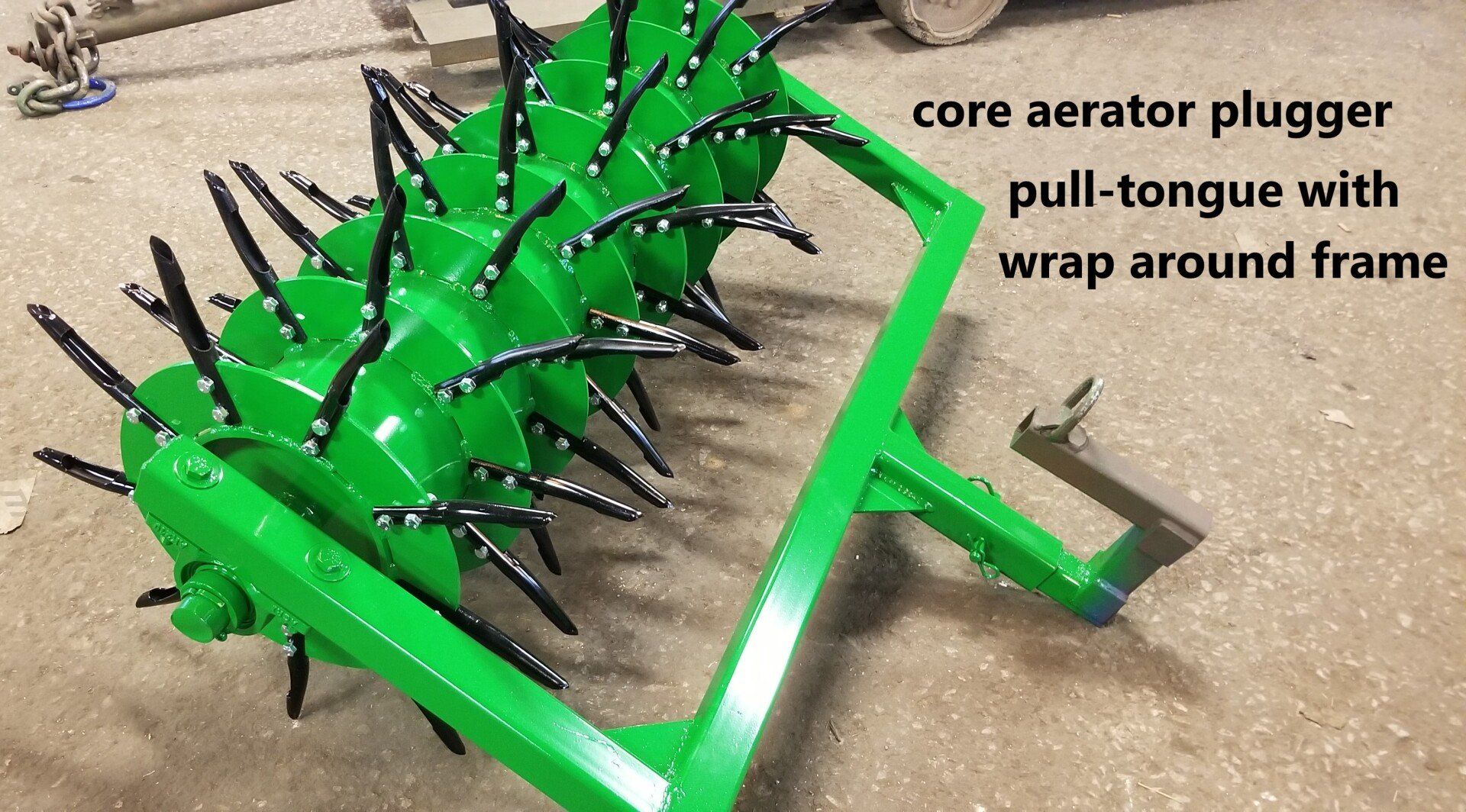

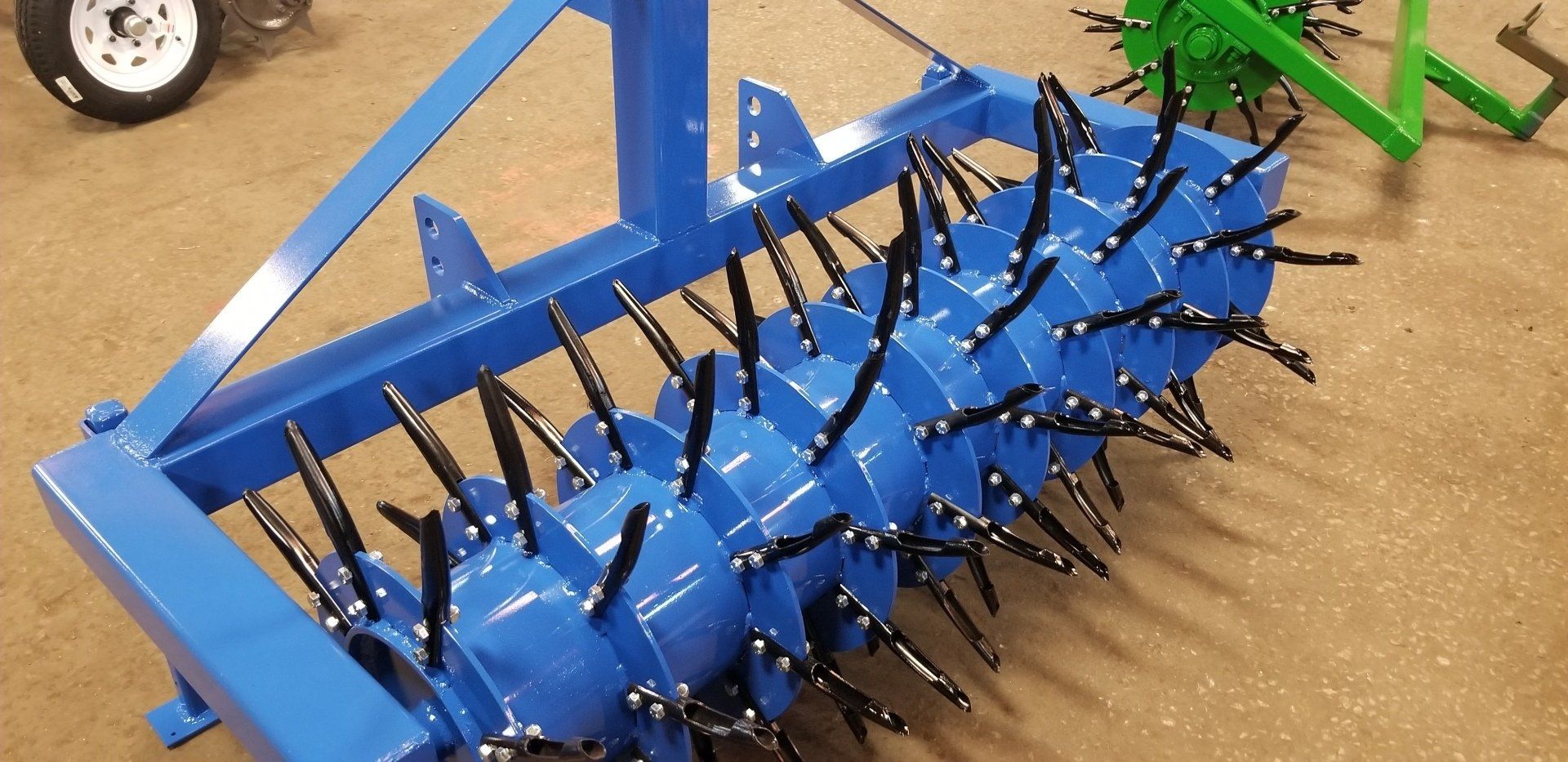

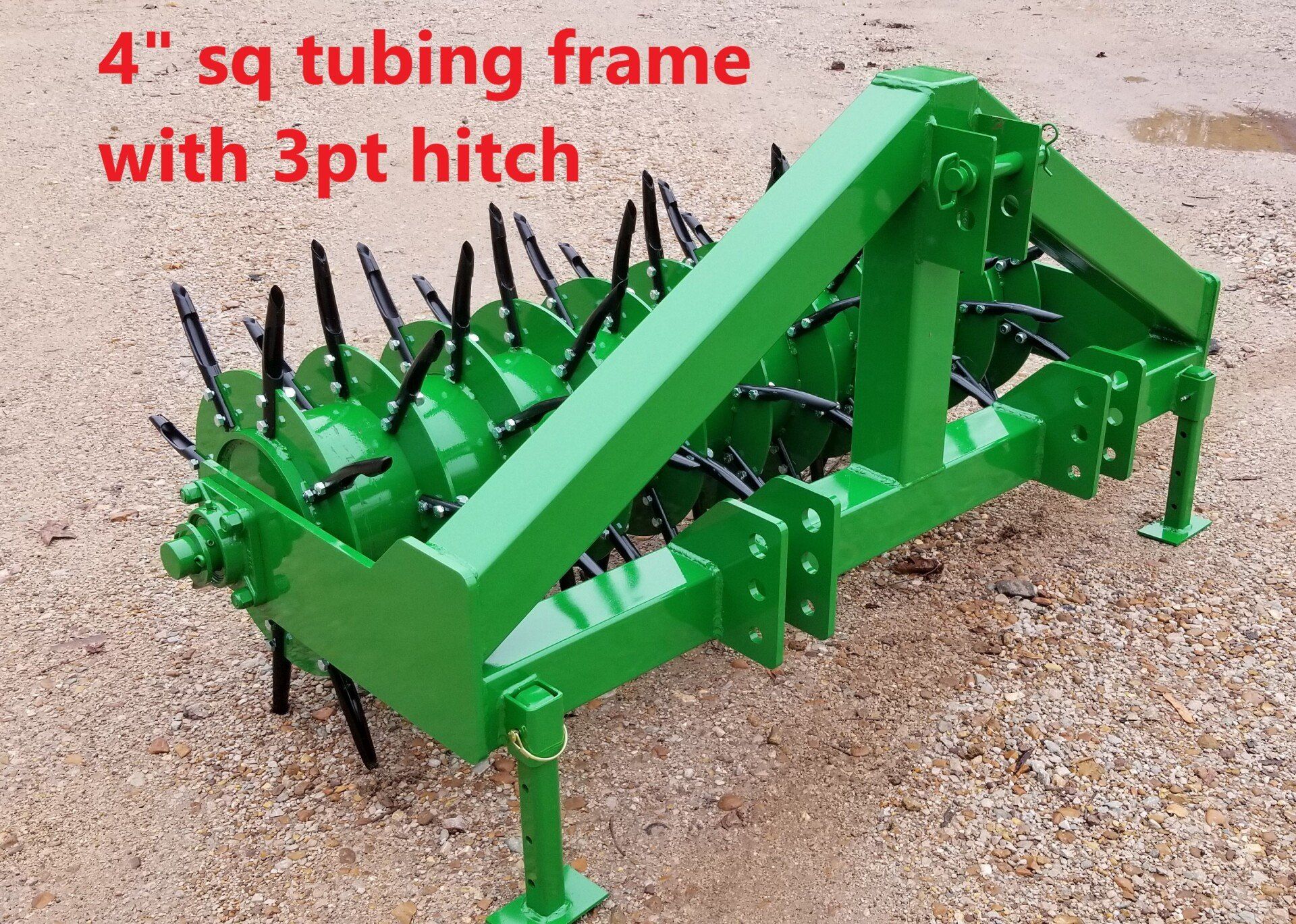

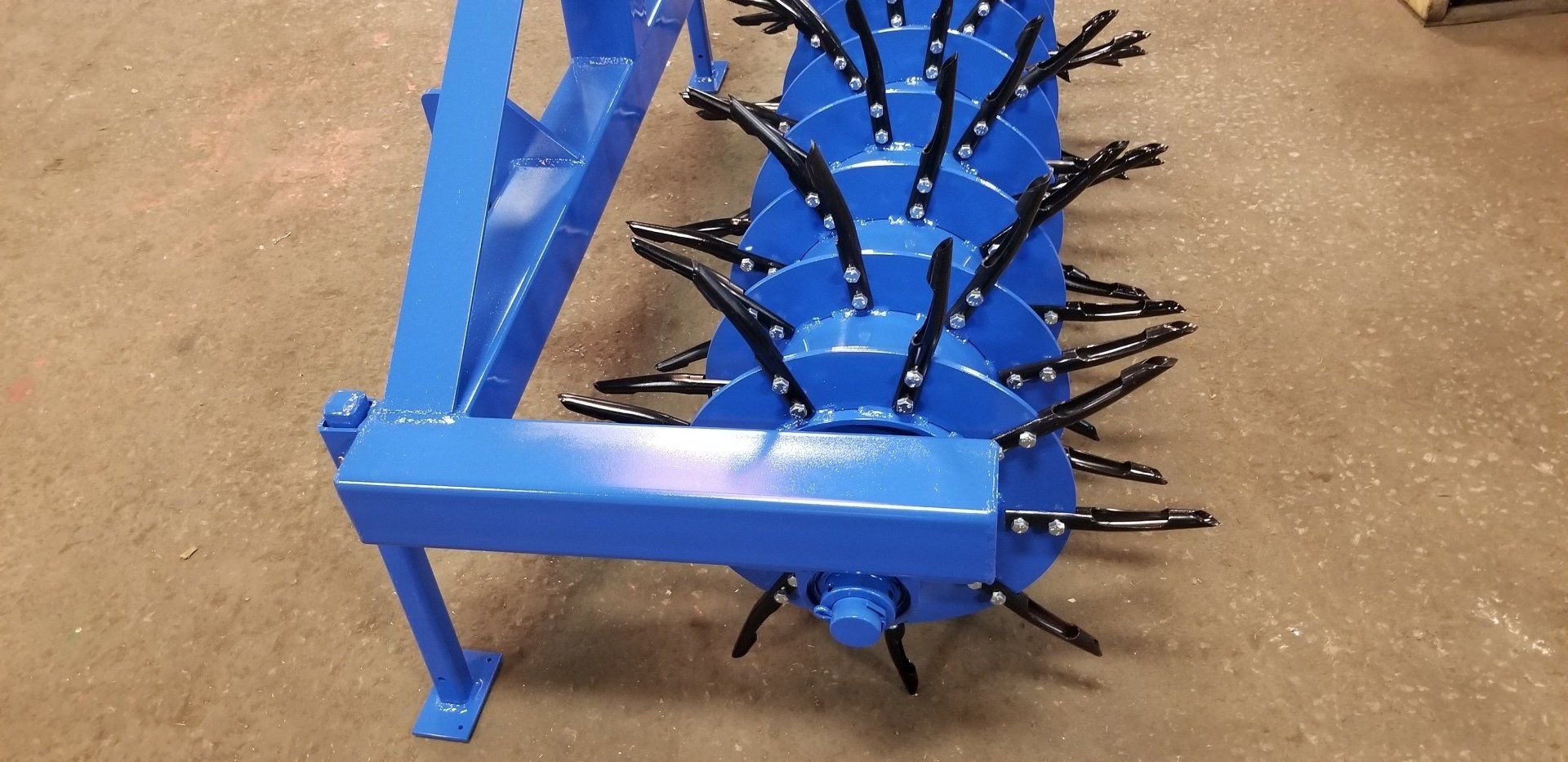

HD Core-Pluggers

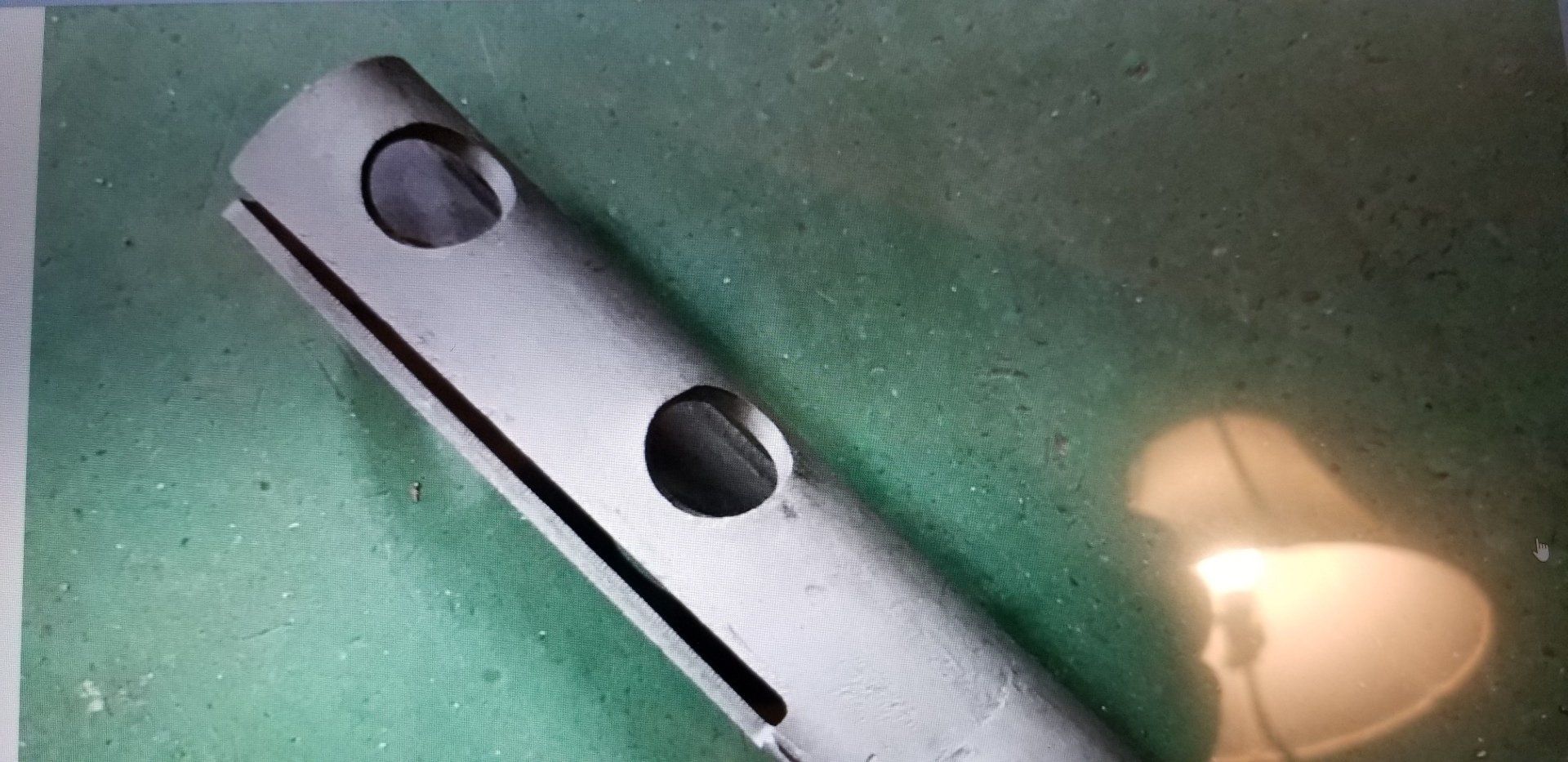

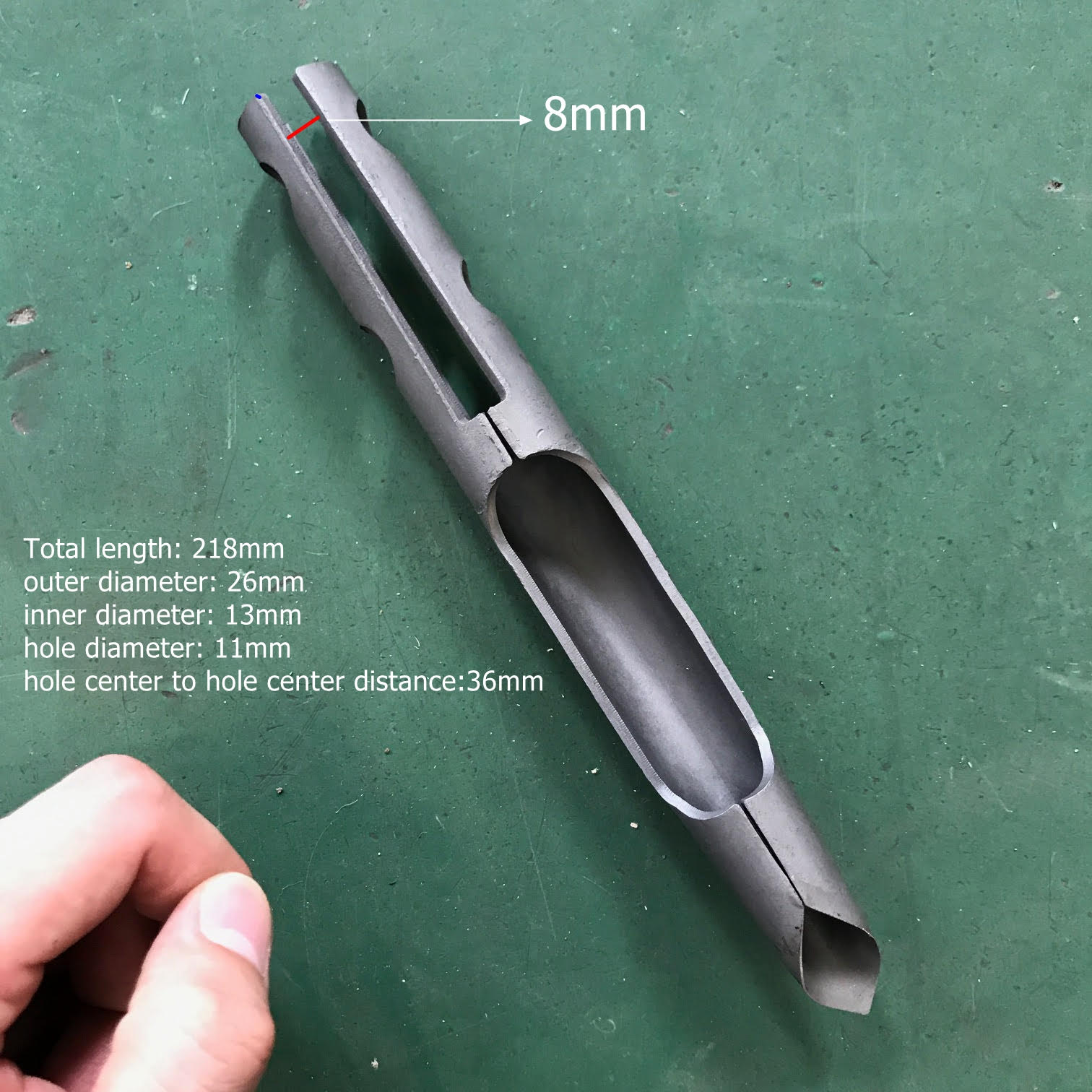

HD Core-Pluggers are built on a thick-wall 10” drum & a 3x5 rectangular tube frame. The 10” drum with 8" harden steel spoons (tines) are hollow and tapered, designed to remove a ½” diameter x 6” deep plug to maximize effectiveness. The removable spoons are mounted on a flange to provide a sturdy, functional Aerator with a total 28” diameter. Available with pull-tongue, 3-pt hitch or front-end loader QA. Available with the travel options listed below.

Our frames are strong, the quality bearings are greaseable, the drum has a plug to permit adding/removing water for added weight, and the 2" solid steel axle provides durability and smooth operation. Standard units will weigh appx 100lbs per ft (dry).

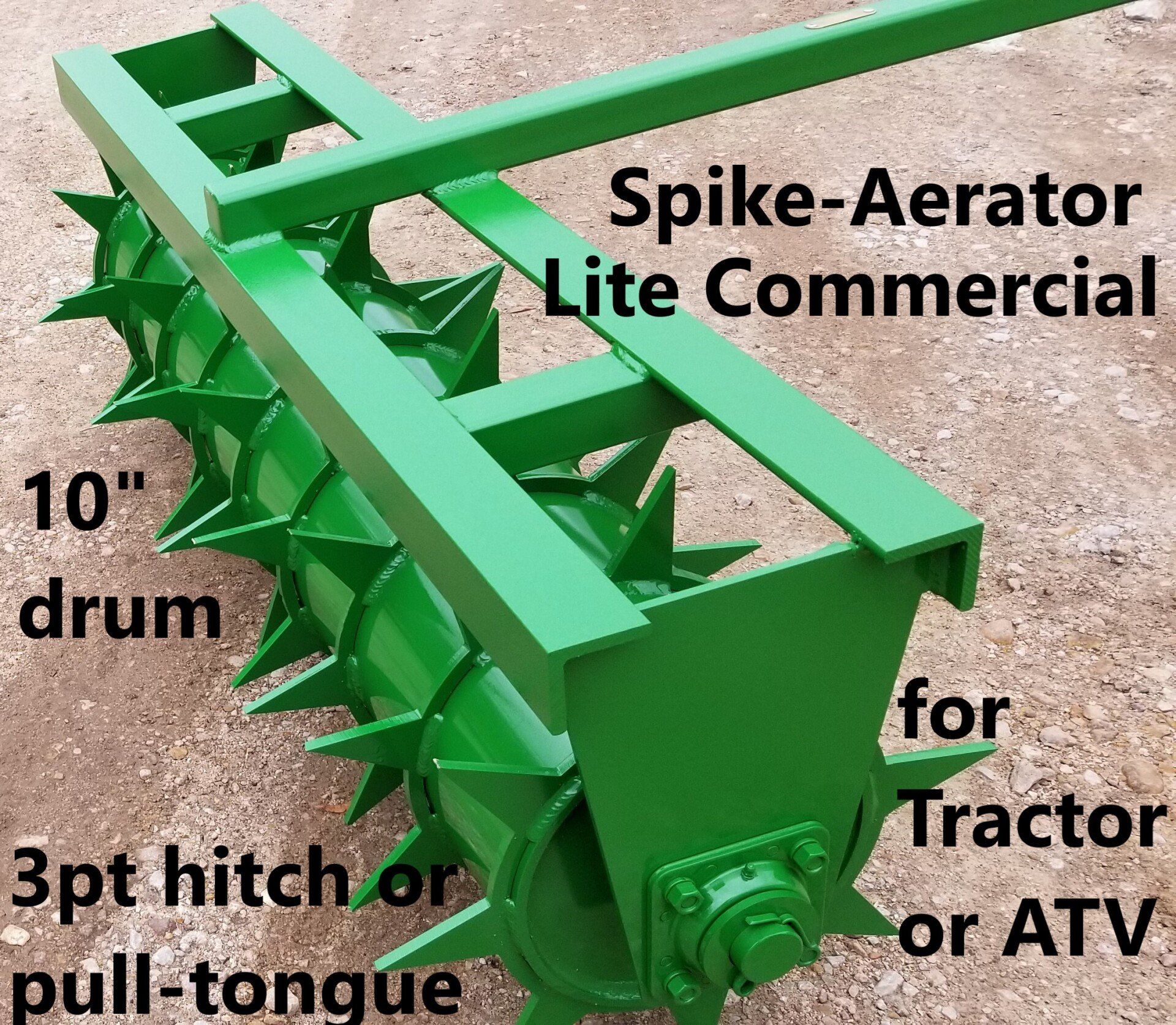

Residential Spike-Aerators

Commercial-Grade Residential Spike-Aerators are built with 1 3/4" solid steel axle and quality grease-able bearings.  The frames are made from 2 ½” angle iron that is 3/8” thick. Extra cross-bracing and laser-cut bearing plates ensure smooth operation and durably. Available with the travel options listed below.



Riding on a solid 1 ¾” axle & supported by two quality bearings, the 19” spike-drum has a plug to permit adding/removing water for added weight – increasing the dry weight from appx 85lbs per foot, to appx 120lbs per ft when filled.

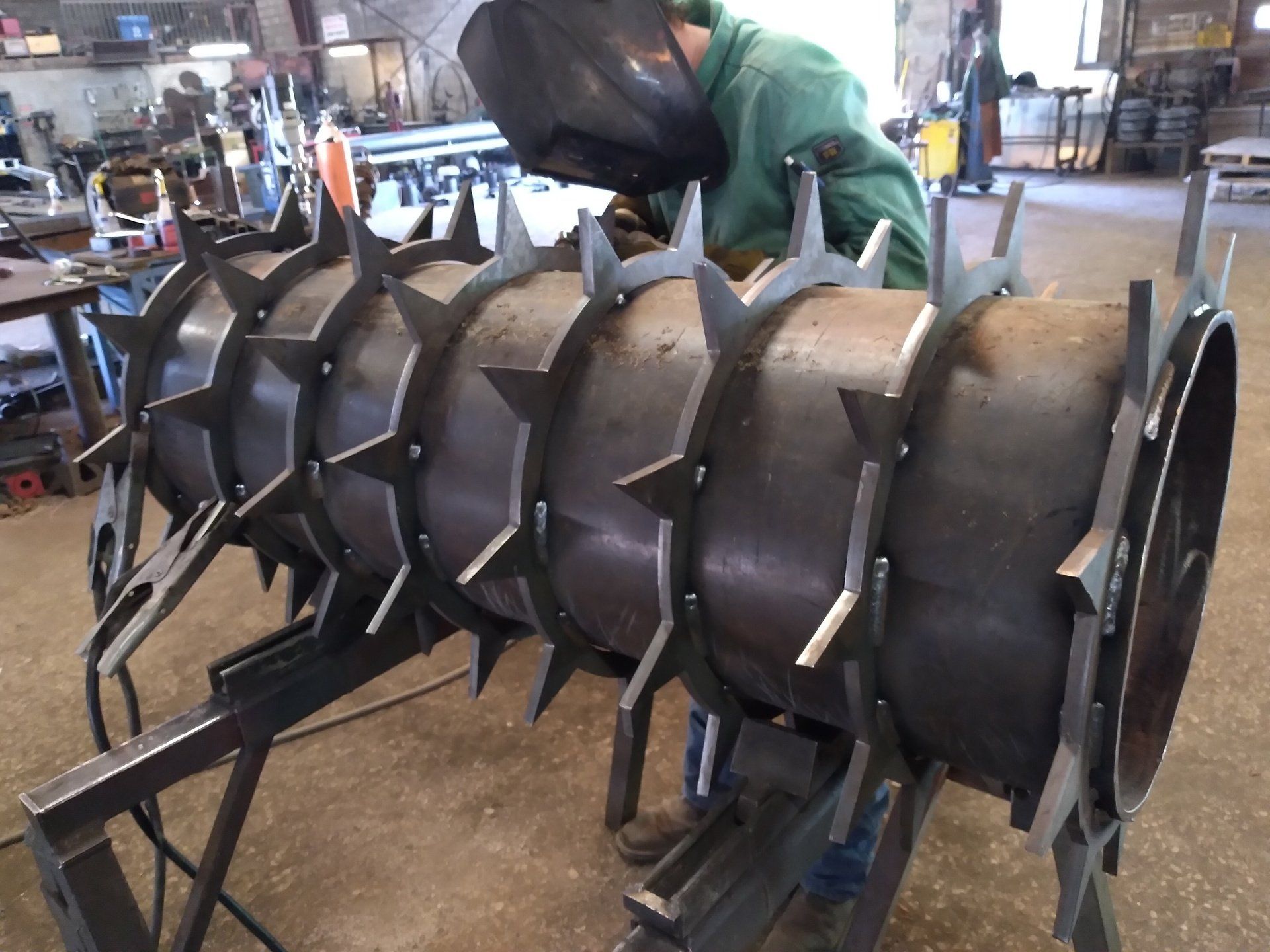

Designed to punch 4.5” x 2” holes to maximize effectiveness. The 4.5” long solid spikes are 3/8” thick and mounted to a thick-wall 10 ¾ inch drum & a 1 ¾” to provide max weight & durability. Available as pull-tongue and/or 3-pt hitch or front-end loader QA.

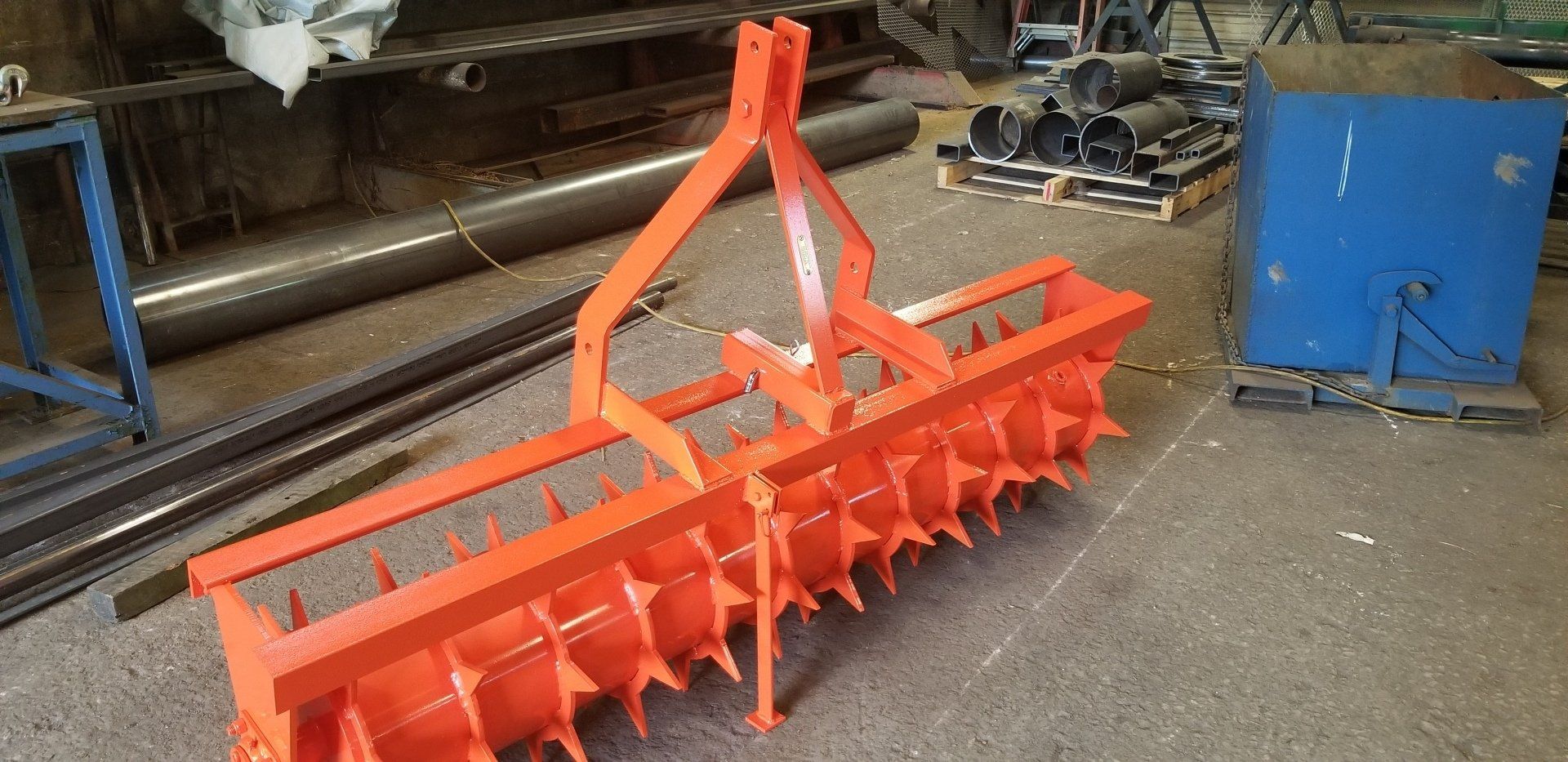

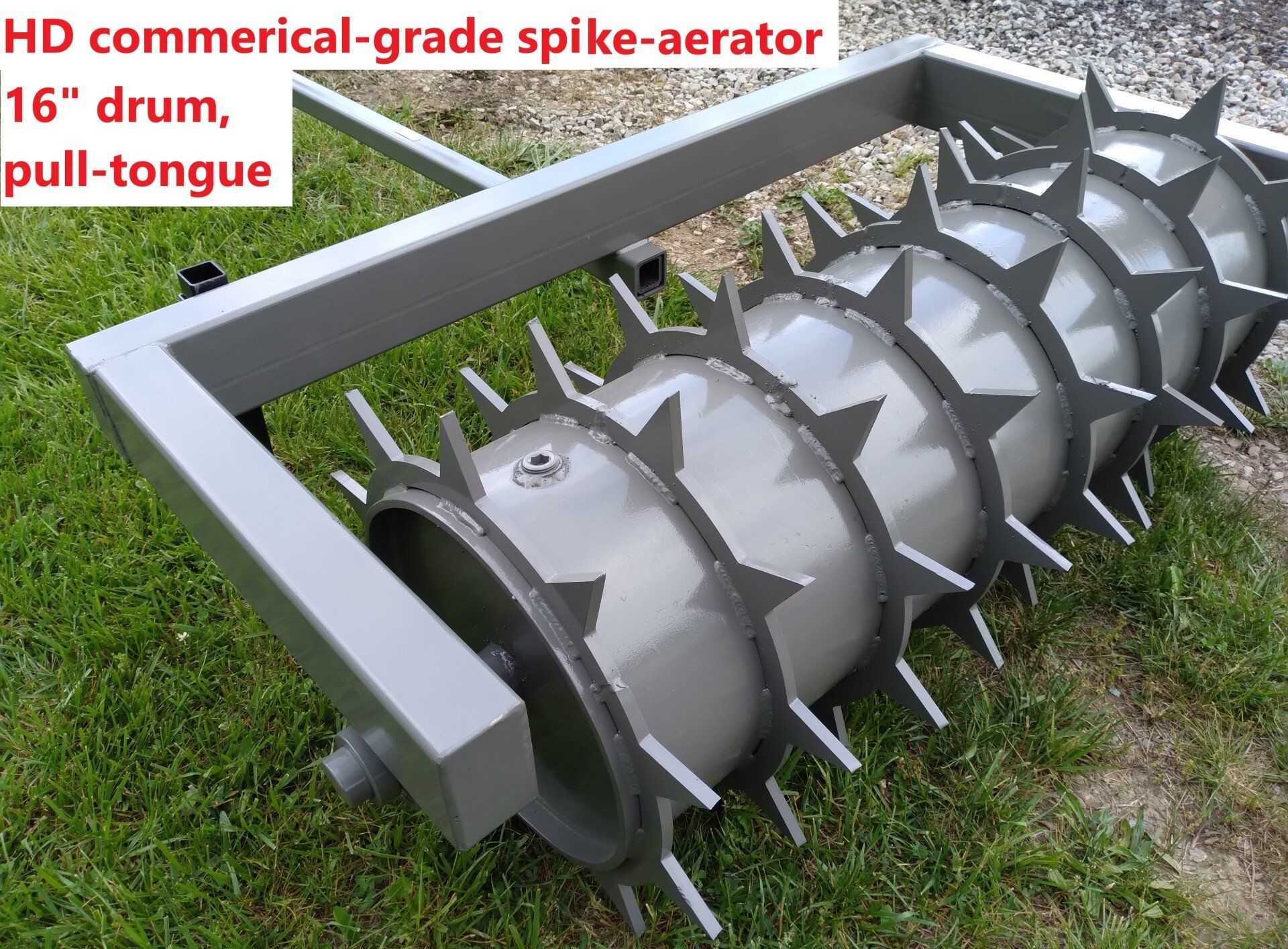

HD Commercial Grade Spike-Aerators

HD Commercial Grade Spike-Aerators are built on a 3/8” thick, 16” diameter drum. The 2" solid steel axle is supported by quality grease-able bearings.  Depending on size, the frame may be built with 3x5, 4x6, or 6x8” rectangular tubing with cross-bracing and gusset supports as necessary to ensure exceptional strength, smooth operation and durability.



The 27” spike-drum has a plug to permit adding/removing water for added weight – increasing the dry weight from appx 130lbs per foot, to appx 175lbs per ft when filled.



Designed to punch 4.5” x 2” holes to maximize effectiveness. The 4.5” long solid spikes are 1/2” thick. Available as a pull-tongue, 3pt hitch or frontend loader QA. Available with manual-lift or hydraulic travel systems.

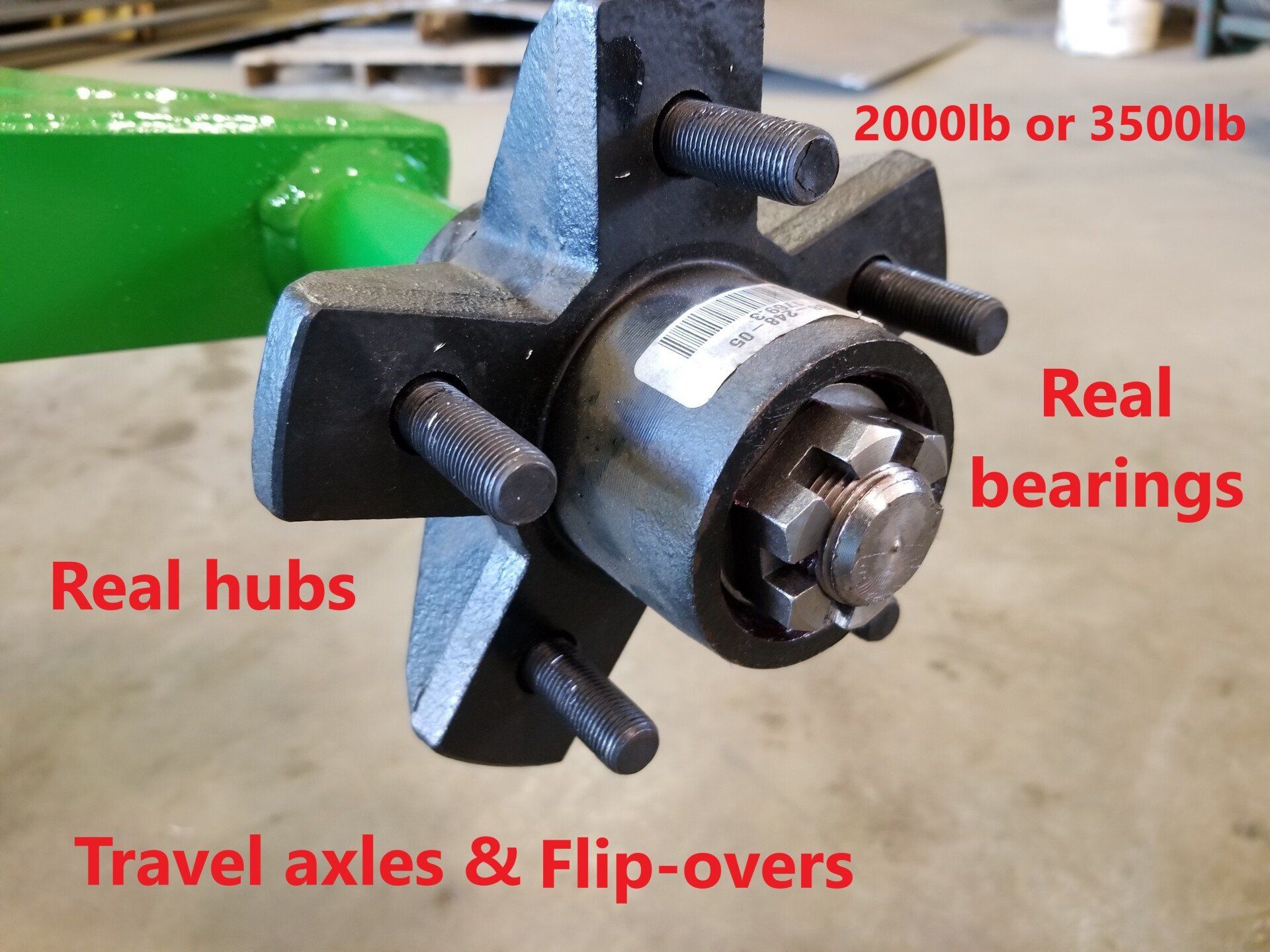

TRAVEL OPTIONS

For travel, you can choose 3-pt hitch, pull-tongue, flip-over, manual-lift, or
   hydraulic travel systems - or most any combination.

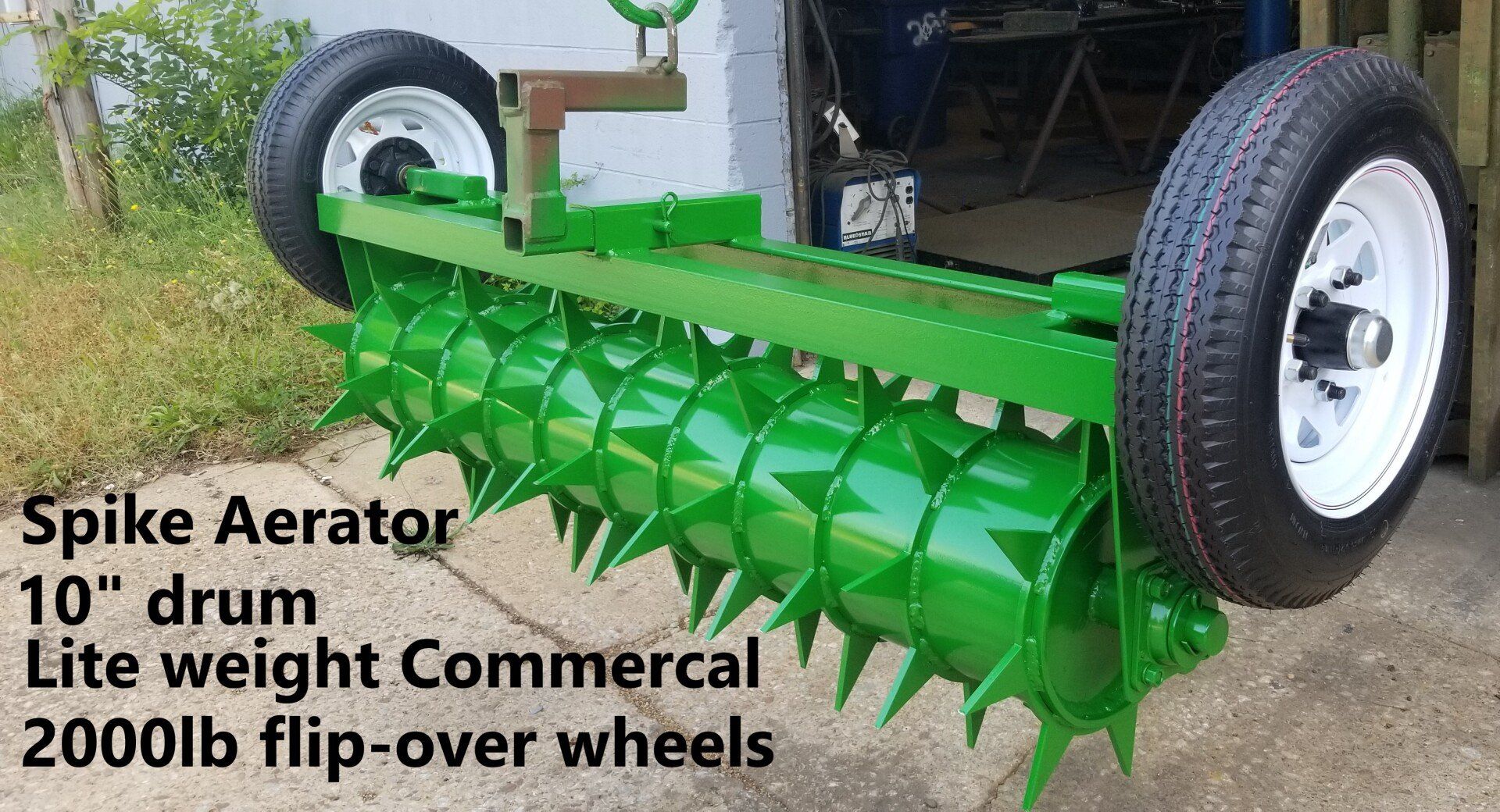

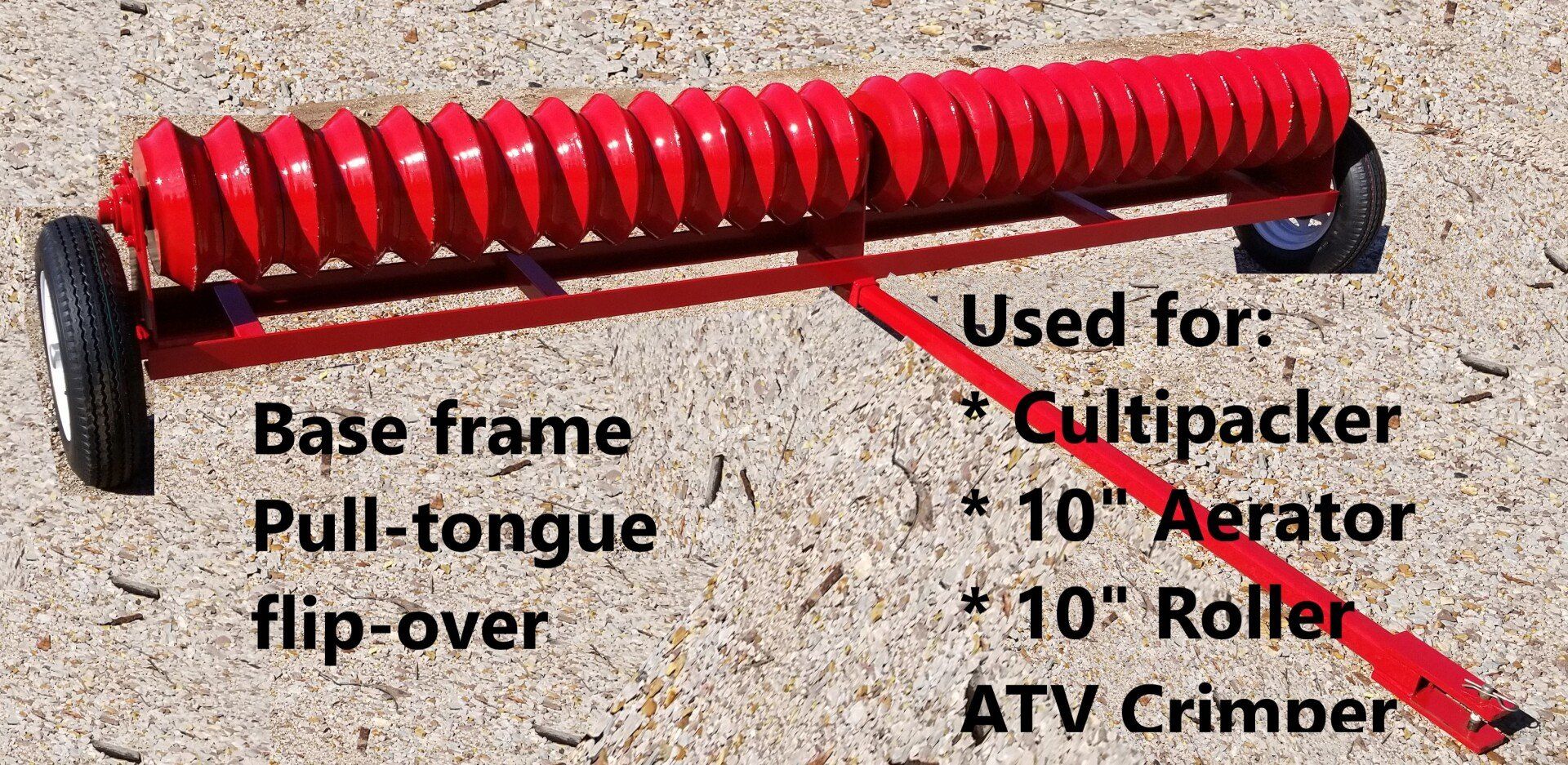

Flip-over

Flip-over models are available in sizes of 3-10’ with 12" wheels/tires.

 * The flip-over option gives you great flexibility at a reasonable price. But these things weigh appx 100lbs per foot. Flipping over an 800-1000 cultipacker is difficult.  If you opt for a flip-over, I recommend you block both wheels & use a chain or strap to flip. Just let it free-fall and then hook back up. A good alternative for larger units is a manual-lift.

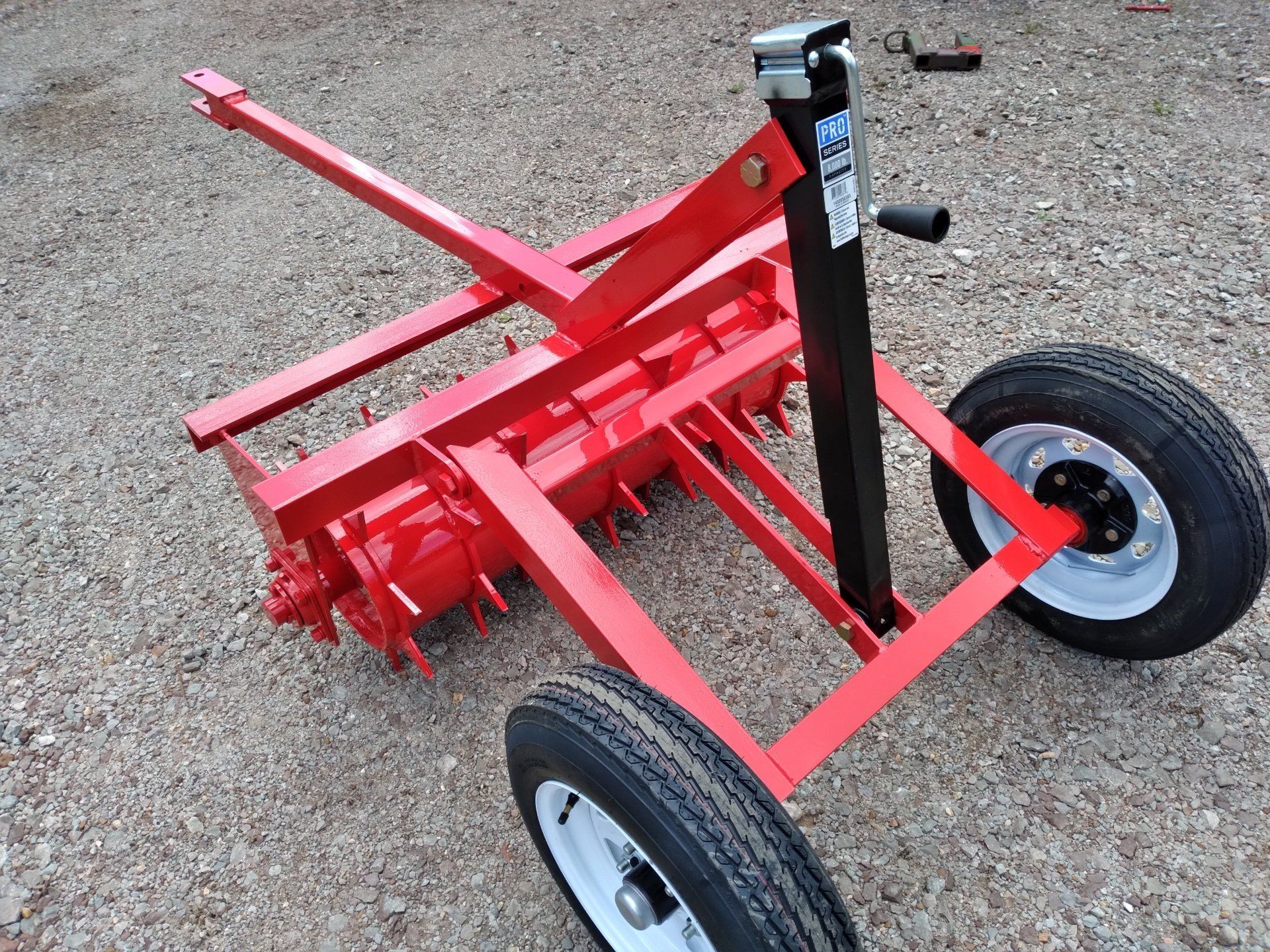

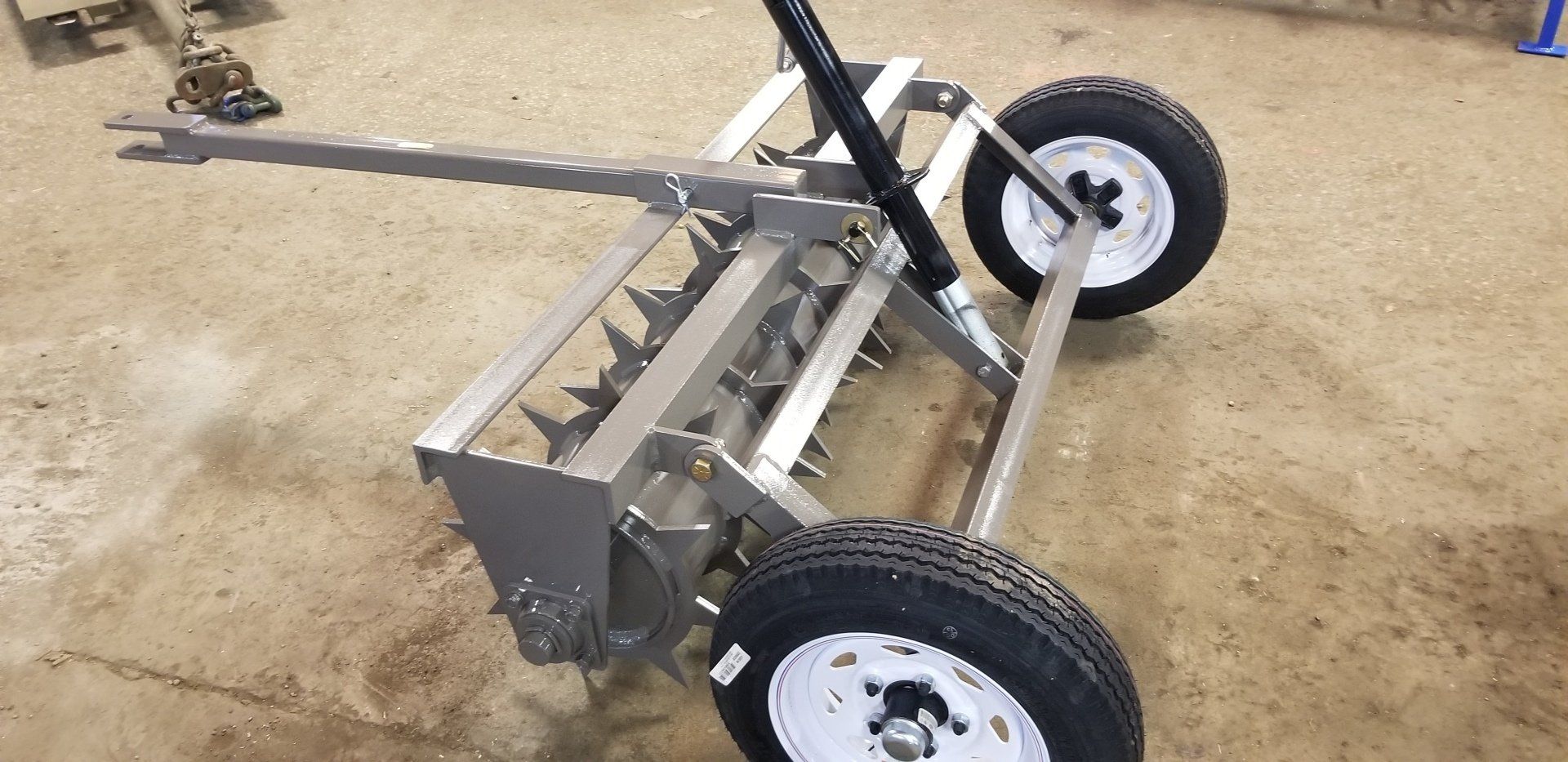

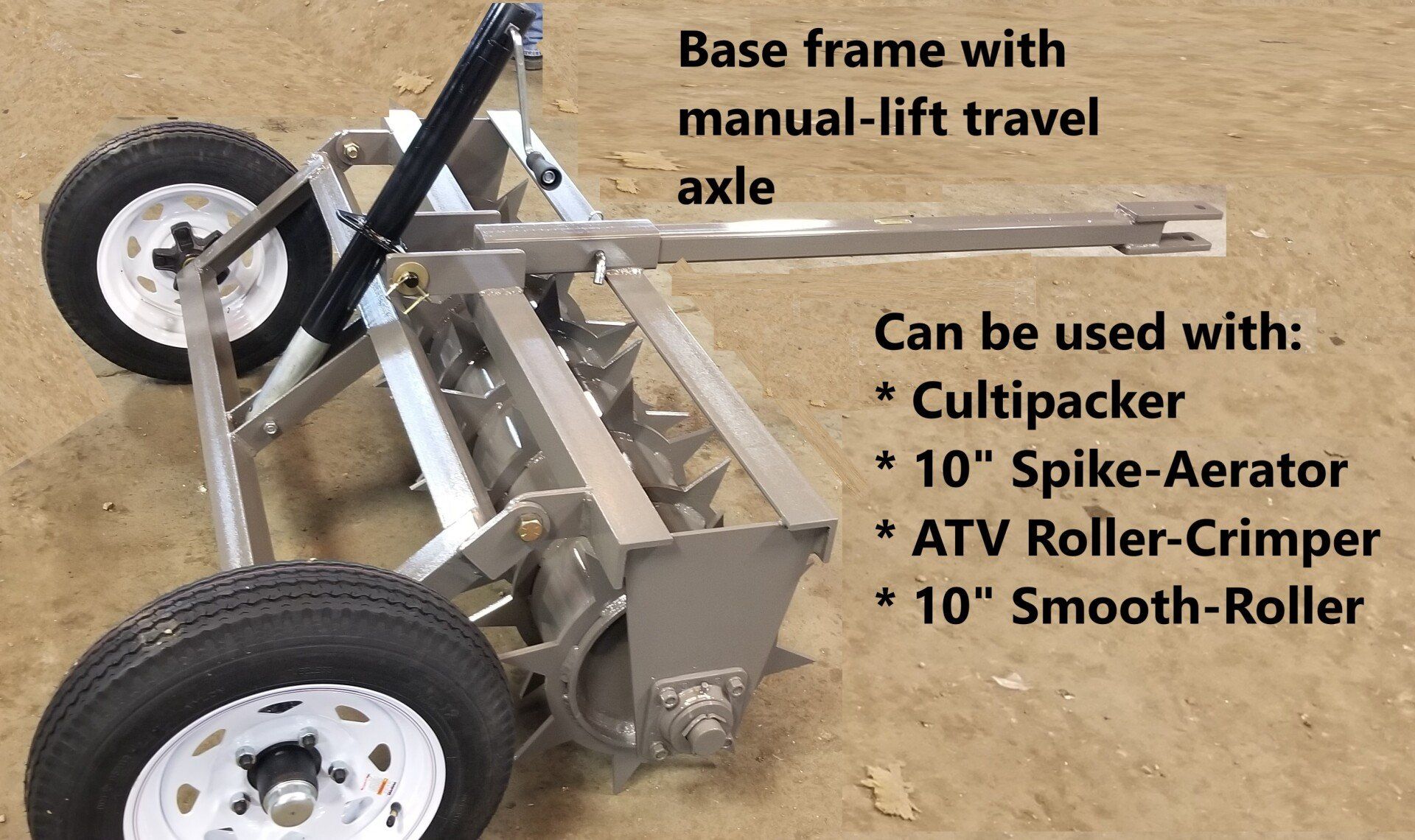

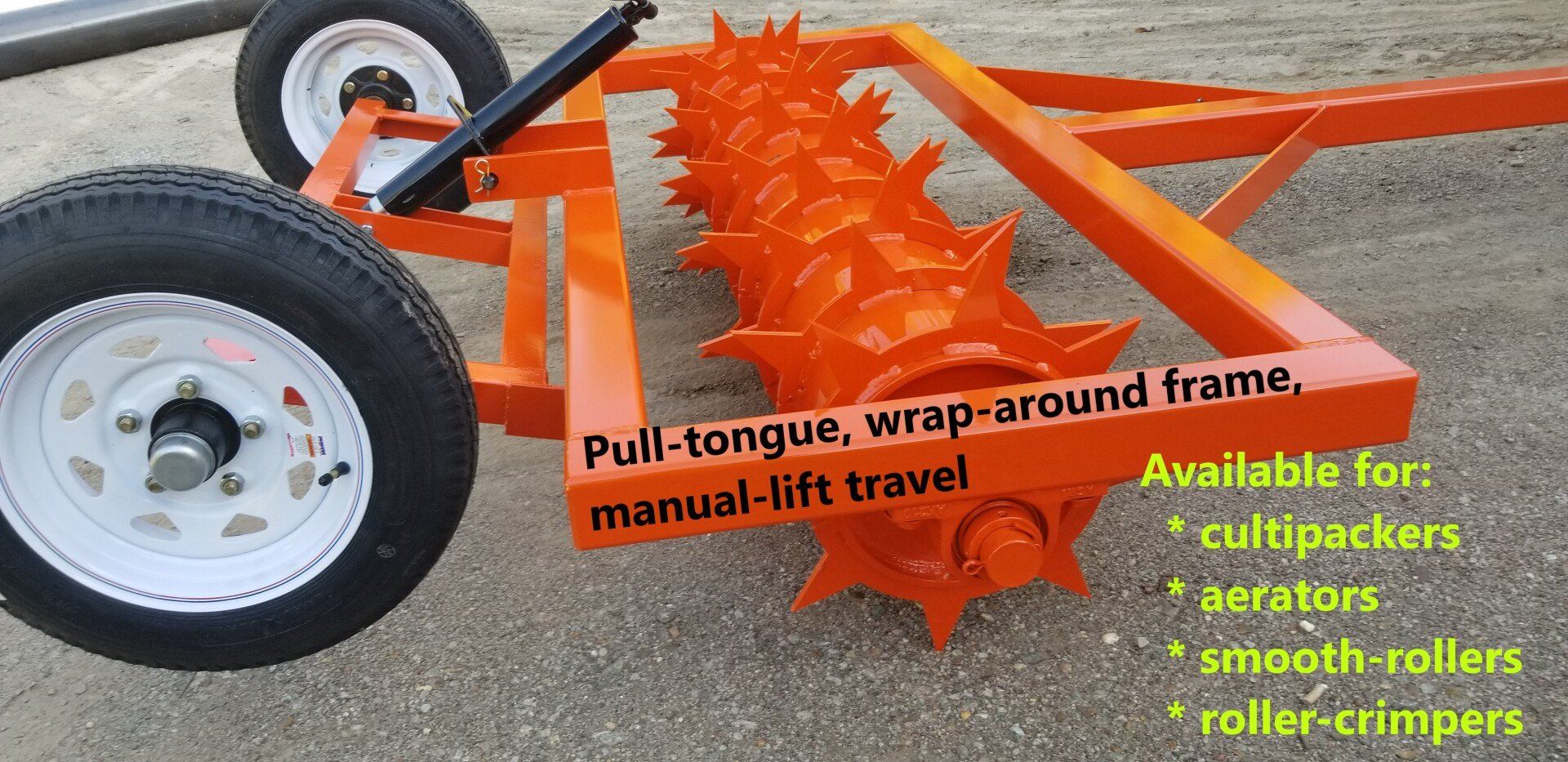

Manual-lift

Manual-lift models models are available in sizes of 3-12' with 12" wheels/tires.

The manual-lift travel system costs less than hydraulics and eliminates the need to disconnect or flip your unit to travel.  The heavy-duty jack to make lifting easier & quicker.

Hydraulic-lift

Hydraulic-lift models are available in any size with 14/15" wheels/tires, new hoses & quick-connects. Everything you need to hit the field.

Your choice of colors.

WARRANTY

Custom Cultipacker equipment is warranted against defects in material or workmanship for three years.

We insist on producing nothing but the highest quality, longest lasting equipment on the market.

PAYMENT

50% down puts your unit in production, the remaining 50% due prior to delivery. We accept credit cards, PayPal, Zelle, & checks.  Prices good for 90 days. Special offers good for 1 week.


For current prices and availability, please call, text or email us.
