Depending on your needs, you can choose between 10" or 16" drum Roller-Crimper.
Either drum size has a 3/8” thick wall and rides on a solid 2” axle. Both have quality greaseable bearings to provide durability and smooth operation.
Our standard blade is 3" wide & 3/8” thick and pre-drilled holes every 8” to facilitate replacement blades.

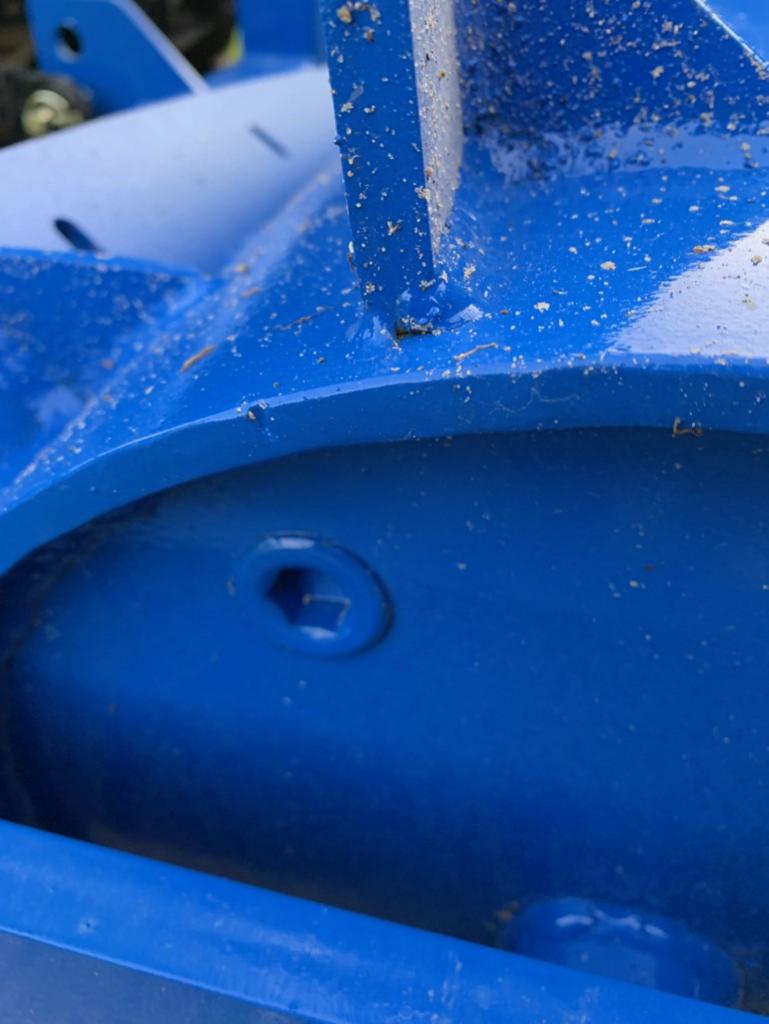

With any size, the drum has a plug to permit adding/removing water for added weight.
Appx weight:
10" will weigh appx 100lbs per ft dry (130lbs wet).
16” will weigh appx 130lbs per ft dry (160lbs wet).
WELCOME TO CUSTOM CULTIPACKER’S
ATV Roller-Crimpers

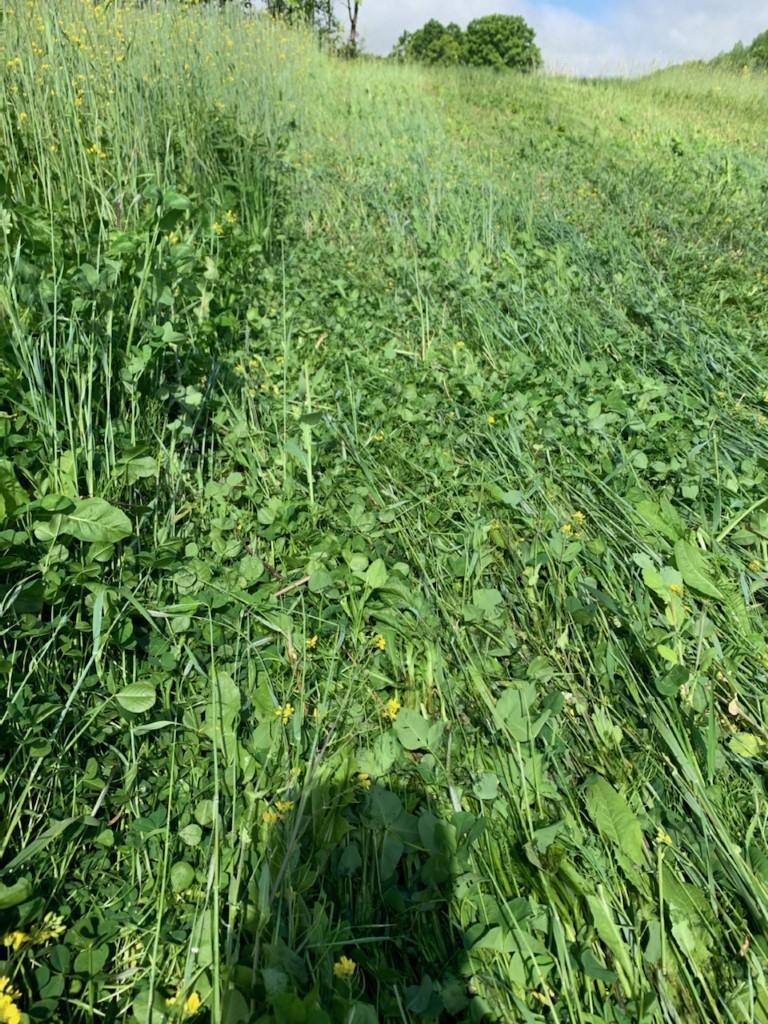

To answer the problems of soil erosion, water retention, and overuse of chemicals, the roller-crimper process has been encouraged by most agriculture universities for several years.
There are only a few manufactures of roller-crimpers, but even fewer that offer units small for small tractors and ATVs. Custom Cultipacker has the answer.
Depending on your needs, you can choose between 10" or 16" drum Roller-Crimper.
Either drum size has a 3/8” thick wall and rides on a solid 2” axle. Both have quality greaseable bearings to provide durability and smooth operation.
Our standard blade is 3" wide & 3/8” thick and pre-drilled holes every 8” to facilitate replacement blades.
With any size, the drum has a plug to permit adding/removing water for added weight.
Appx weight:
10" will weigh appx 100lbs per ft dry (130lbs wet).
16” will weigh appx 130lbs per ft dry (160lbs wet).

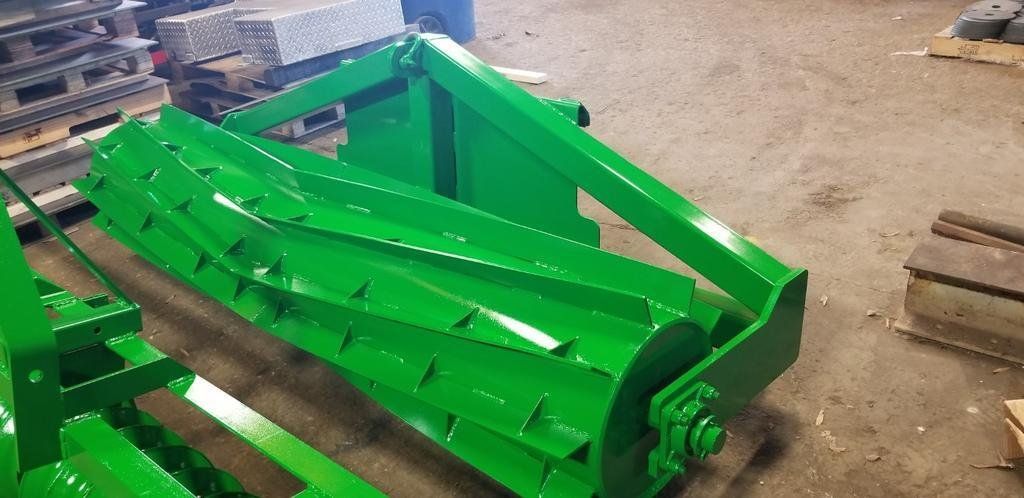

Our Lightweight frame Roller-Crimpers work well for smaller tractors & ATV/UTVs. Ranging from 3’ – 7’, they ride on a 1 3/4" solid steel axle that runs the full length of the drum. Frame is 2 ½” angle iron that is 3/8” thick with extra cross-bracing and laser-cut bearing plates to ensure smooth operation and durability. Quality grease-able bearings & true-pulling frame greatly reduce the drag/load on your ATV/UTV. Available with drop-pin or ball hitch tongue.

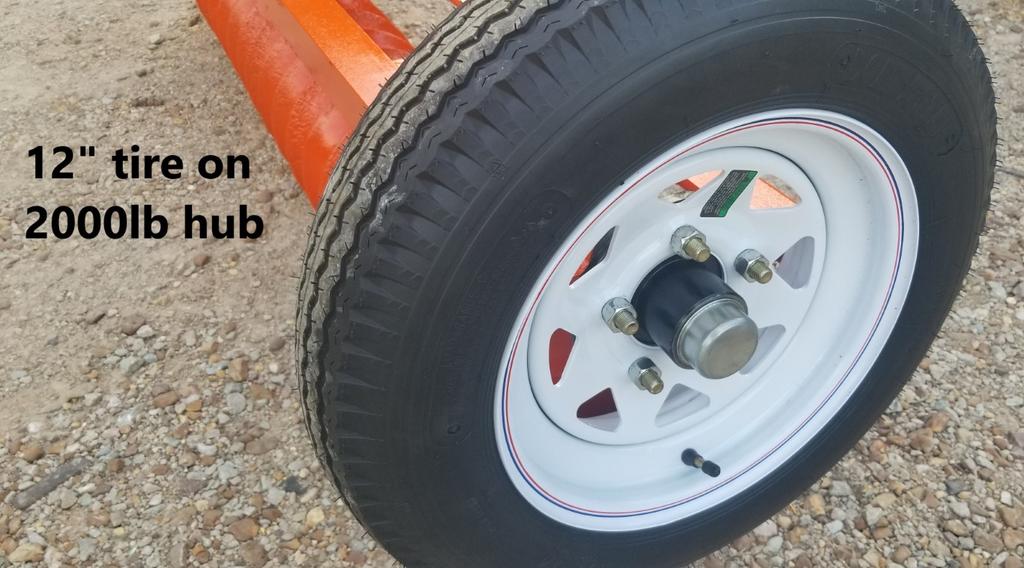

For traveling, our “flip-over” or “manual-lift” units come with 2000lb spindles & hubs, and 12" wheels/tires. Either is strong & durable, and give you a convenient way of transporting from food-plot to food-plot, or to a different property. Available with drop-pin or ball hitch tongue. It also allows you to lift the unit off the ground when stored.
“Flip-over” models are available in 10” drum only, and sizes up to 6’.
* The flip-over option gives you great flexibility at a reasonable price. But these things weigh 100lbs+ per foot. Flipping over an 800-1000 cultipacker is difficult. If you opt for a flip-over, I recommend you block both wheels & use a chain or strap to flip. Just let it free-fall and then hook back up. A good alternative for larger units is a manual-lift.
For 10” or 16” drum units, the “manual-lift” travel system eliminates the need to disconnect & flip to travel. We use an 8k jack to make lifting easier & quicker.
Your choice of colors.

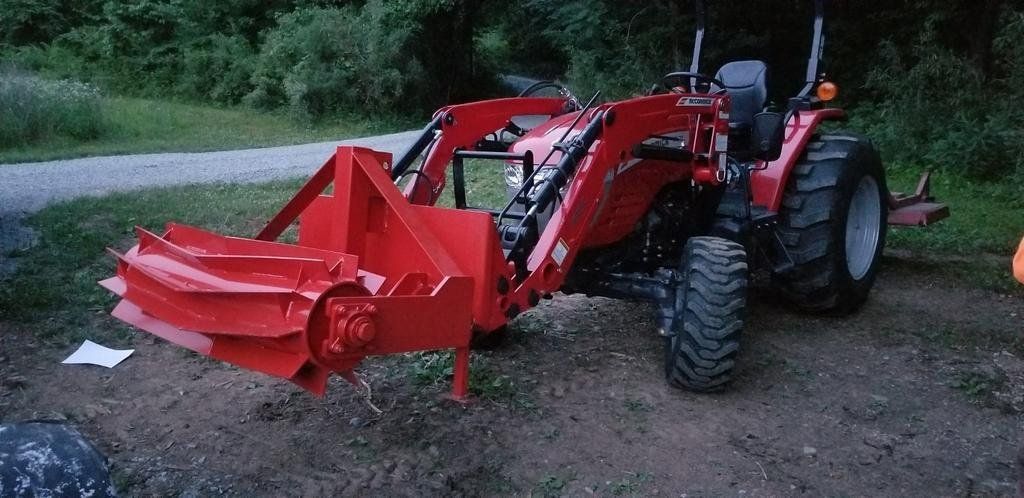

Tractor Roller-Crimpers
Depending on your needs, you can choose between 10" or 16" drum Roller-Crimper.
Either drum size has a 3/8” thick wall and rides on a solid 2” axle. Both have quality greaseable bearings to provide durability and smooth operation.
Our standard blade is 3" wide & 3/8” thick and pre-drilled holes every 8” to facilitate replacement blades.
With any size, the drum has a plug to permit adding/removing water for added weight.
Appx weight:
10" will weigh appx 100lbs per ft dry (130lbs wet).
16” will weigh appx 130lbs per ft dry (160lbs wet).

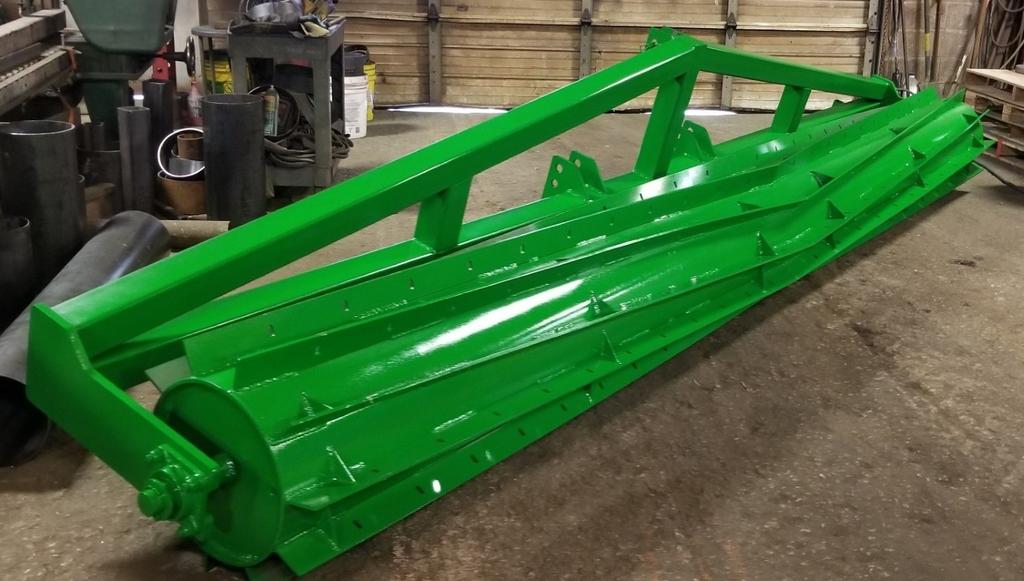

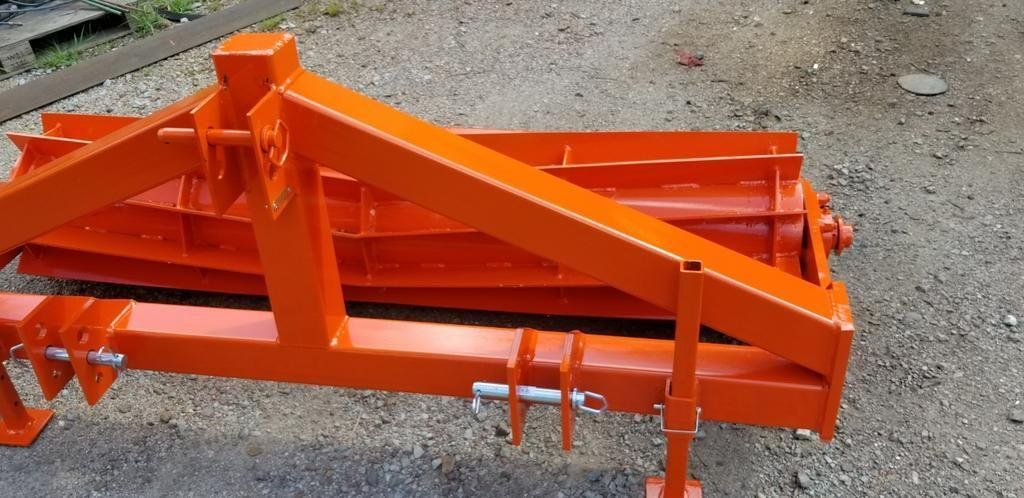

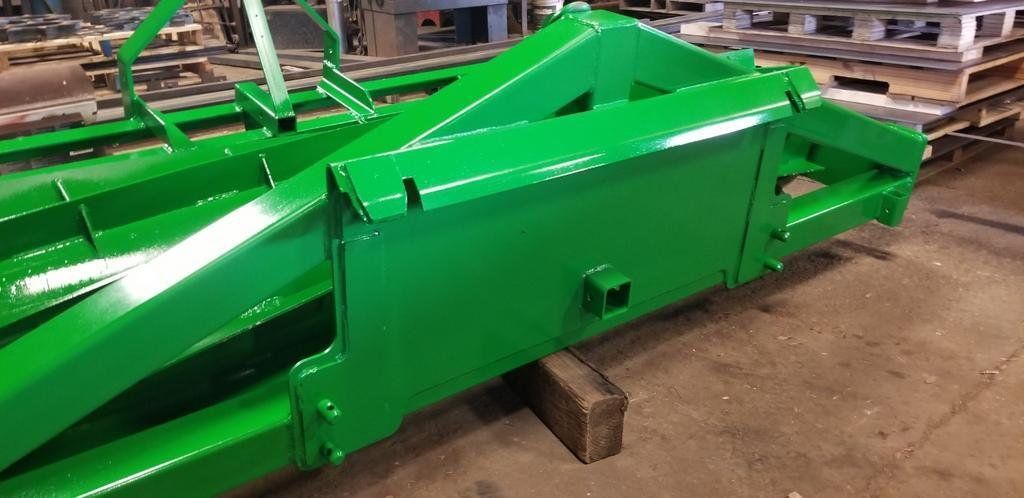

Our Standard Roller-Crimpers are built on a 4”x 4” square tubing frame. They ride on a heavy 2" solid steel axle & quality grease-able bearings. The extra cross-bracing and laser-cut bearing plates ensure smooth operation and durably. Blades are reinforced with extra bracing.
When extra strength is needed, we offer frames built with 3” x 5”, 4” x 6” and 6”x 8” tubing.
For traveling, either of the 10” or 16” drum units are available with the manual-lift or hydraulic travel options.

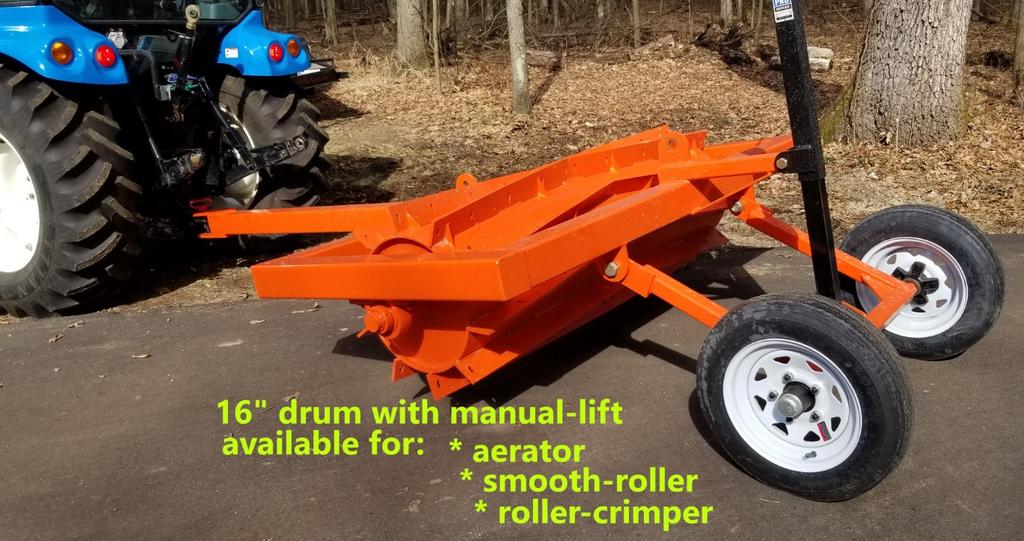

The “manual-lift” travel system offers a convenient and economical means of transporting your roller-crimper. We use an 8k jack to make lifting easier & quicker.
Hydraulic units come with new hoses & quick-connects. Everything you need to hit the field. Your unit will have 3500lb spindles & hubs, bearings, and 15" wheels/tires.
Your choice of colors.
